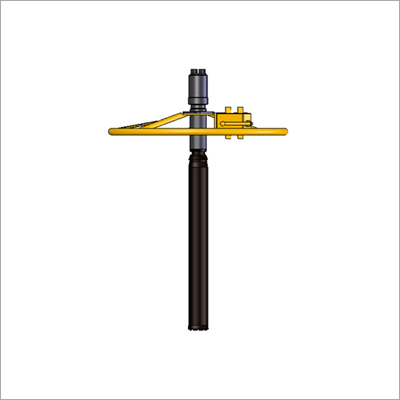

HY-F40 Flush Drill (Mini Drill)

HY-F40 Flush Drill (Mini Drill) is mainly used in rivers, soft ground based area and also in agricultural land. Light in weight, this drilling system is reckoned for its ability to drill holes having precise diameter.  It can maintain 40 meter drilling depth. This machine can be transported easily. Overall diameter of this HY-F40 Flush Drill (Mini Drill) is 300 mm x 300 mm x 3400 mm. This machine consists of standard component like self priming type centrifugal pump, single cylinder based gasoline driven engine that supports force air cooling technology and 8 meter suction head lift.

Technical Specification

• Drilling depth : 40m with mud drilling
• Bit size : 3 1/2” OR 4” 3-wing drag bit
• Drilling pipe : 42mm (OD) X 3000mm (L)
• Total weight : 18 kg
• Overall dimension : 300 x 300 x 3400 mm
