Truck Mounted Drill Rig

With vast industrial knowledge and deep market understanding, we are engaged in manufacturing and supplying Truck Mounted Drill Rig. It is aesthetically designed and developed to meet handle drilling and rotary drilling. Owing to its  high tensile strength, easy functionality, negligible maintenance and longer working experts. Additionally, our provided Truck Mounted Drill Rig is easy to operate and durable thus ensures our customers effective service with least inconvenience.

This series of truck or buggy mounted drill rig is our most powerful series of top driven drill rigs. The operation of the drill is easy and convenient with its powerful and robust hydraulic system. The power for the drill is taken from the engine, no deck engine is required. This allows you to mount as many facilities as possible into the limited space of chassis.

With air compressor and mud pump mounted, this drill can realize nearly all kinds of drilling methods: Air drilling, DTH hammer drilling, auger drilling, mud drilling, or air reverse drilling.

There are different choices of chassis: 4X4 buggy, 6x6 heavy duty off-road trucks or 6x6 commercial trucks. Based on the chassis model, different air compressor or mud pumps can also be chosen.

With hydraulic actuated breakout cylinder or unscrew fork, the connecting and unscrew of drill pipes is safe and easy. The design and production of the drill rig are in conformity with the HSE standard.

The power swivel is a dual motor power swivel with a variable rotation speed control. This design makes the drilling rig to be suitable for different working applications. With RC swivel and drilling tools, the ZJ-200 drill rig series can be used for reverse drilling for sampling.

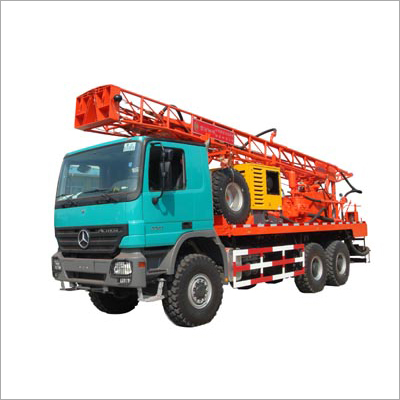

Truck Drill (ZJ-200C):

It is mounted on 6x6 chassis, ZJ-200C is the most powerful top driving model with complicated drilling functions.

• Screw type air compressor: 12.5m3/min @ 1.4MPa
• WT-600 mud pump: 600L/min @ 4 MPa
• Engine: 231kW@2300rpm
• Tire: 14.00R20
• Drill head stroke: 6.5m
• Drilling pipe: Φ76x4500 mm

Buggy Drill (ZJ-200D):

The most popular model in ZJ-200 series is the buggy drill, it is the top driving drill rig mounted on 4x4 Buggy. Buggy drill is the model with great crossing ability in tough areas. It has a powerful engine, unique and robust structure.

• Engine: DEUTZ in-line 6 cylinders inter-cooled turbocharged diesel engine 280hp@2300rpm
• Air compressor: 16.5m3/min @ 0.25 MPa
• 12.5m3/min @ 0.8MPa
• WT-450 Mud pump: 450 L/min @2.5 MPa
• Drill head stroke: 6.5m
• Drill pipe: Φ 76 x 4500 mm
• Grade-ability: 60% (31)
• Tire: 66x43-25 or 23.5-25
